Crystal structure

Lore & Background

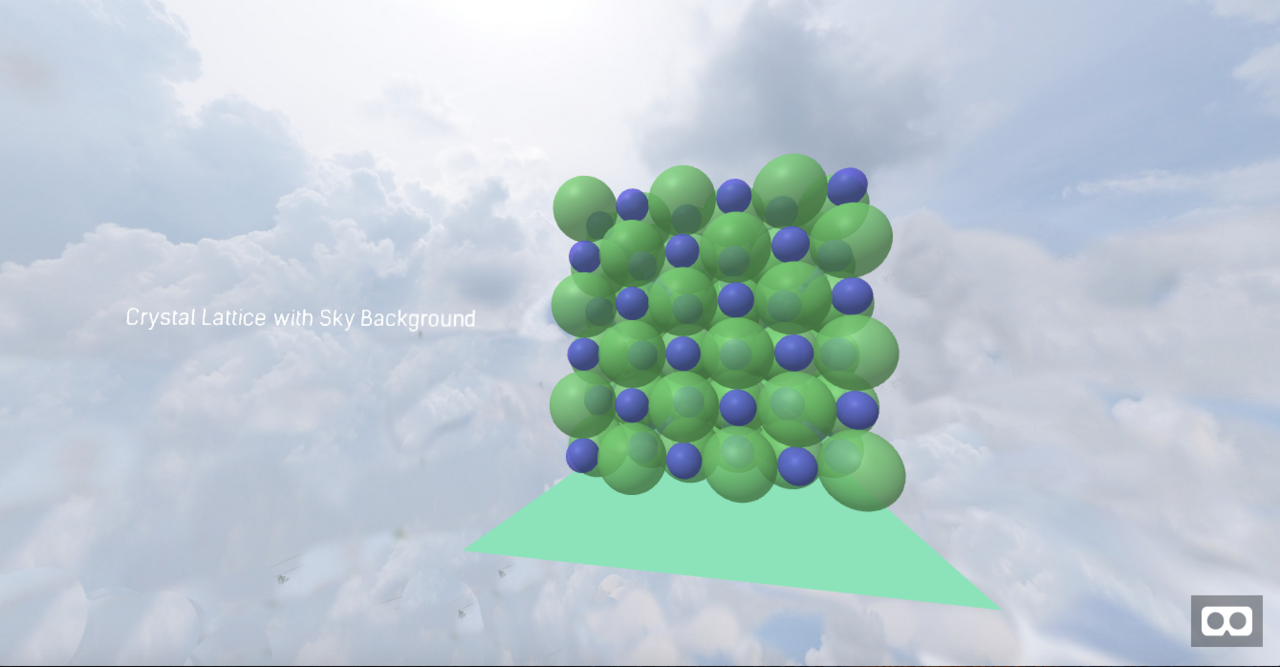

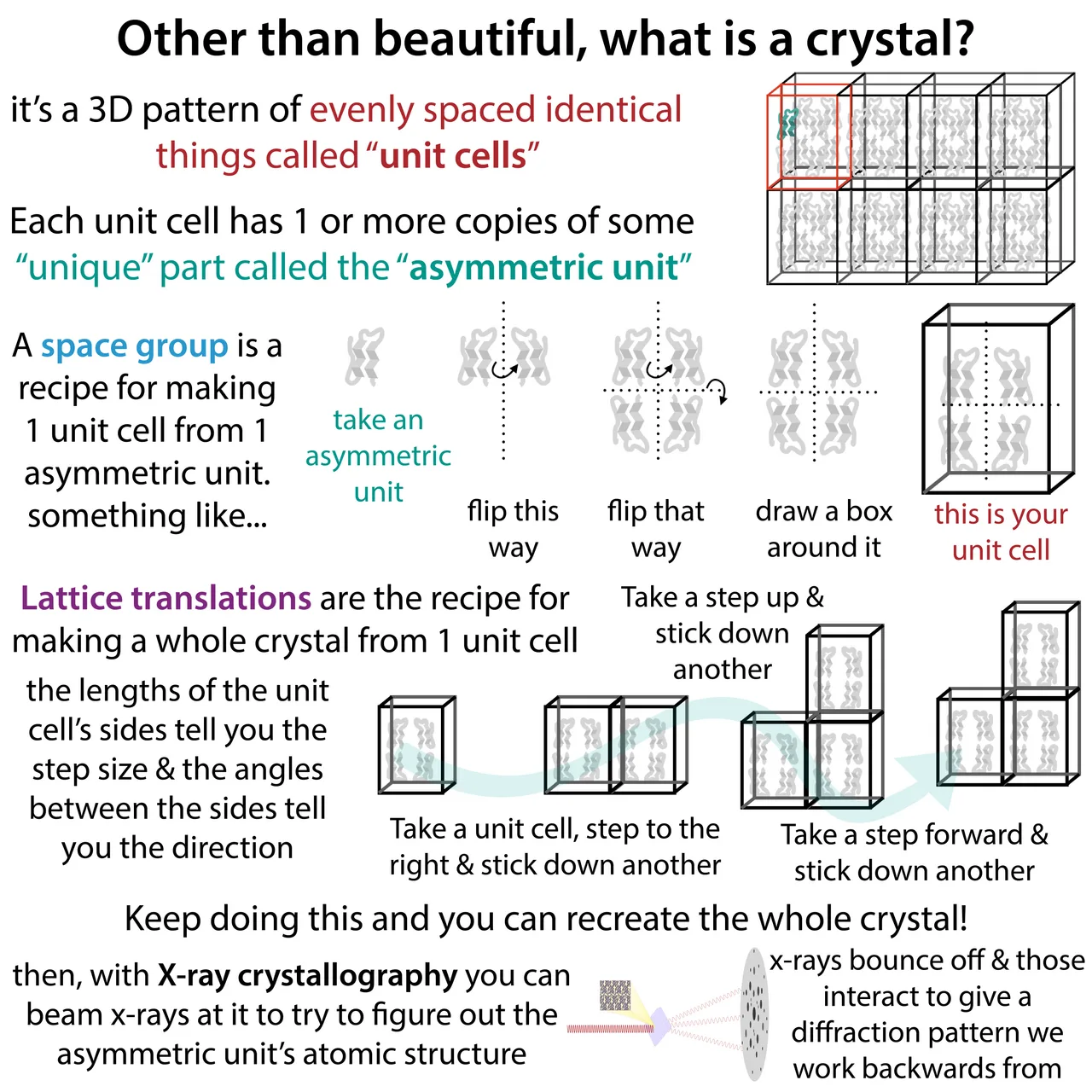

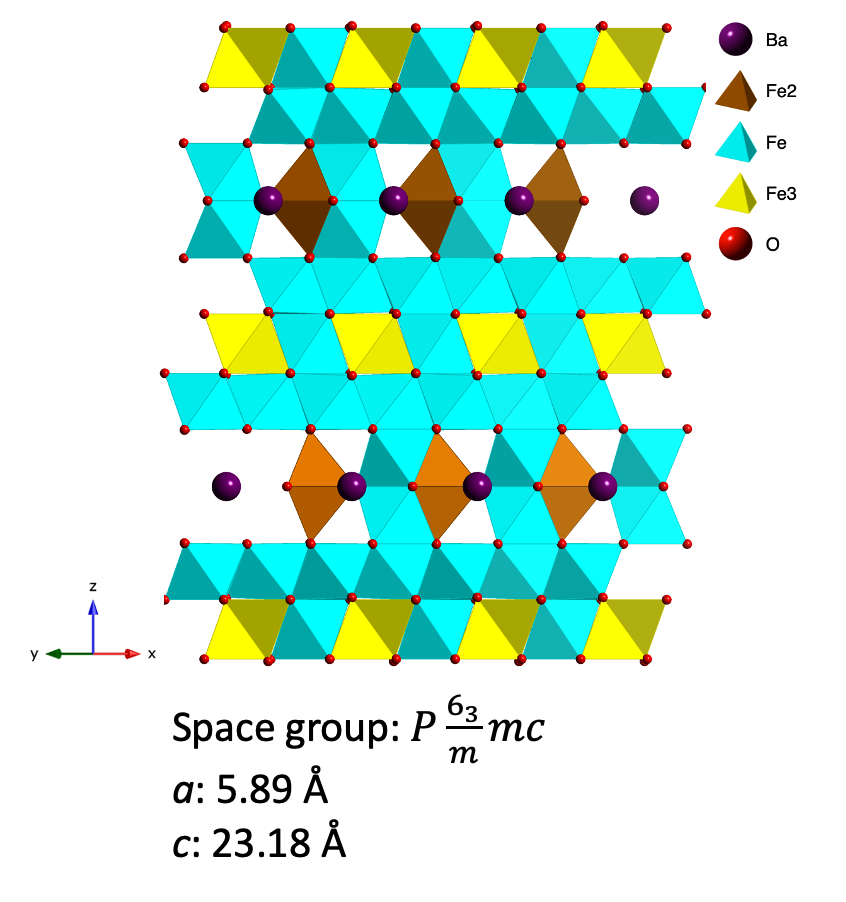

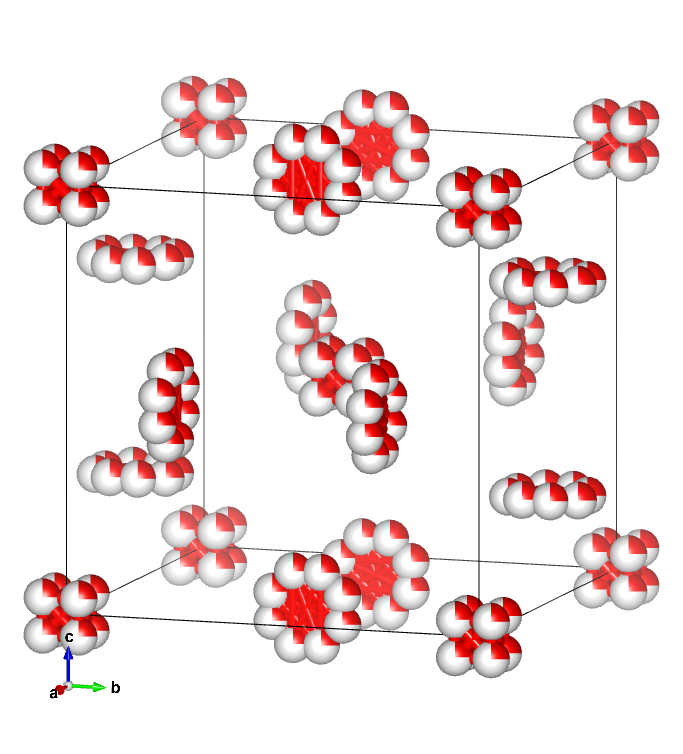

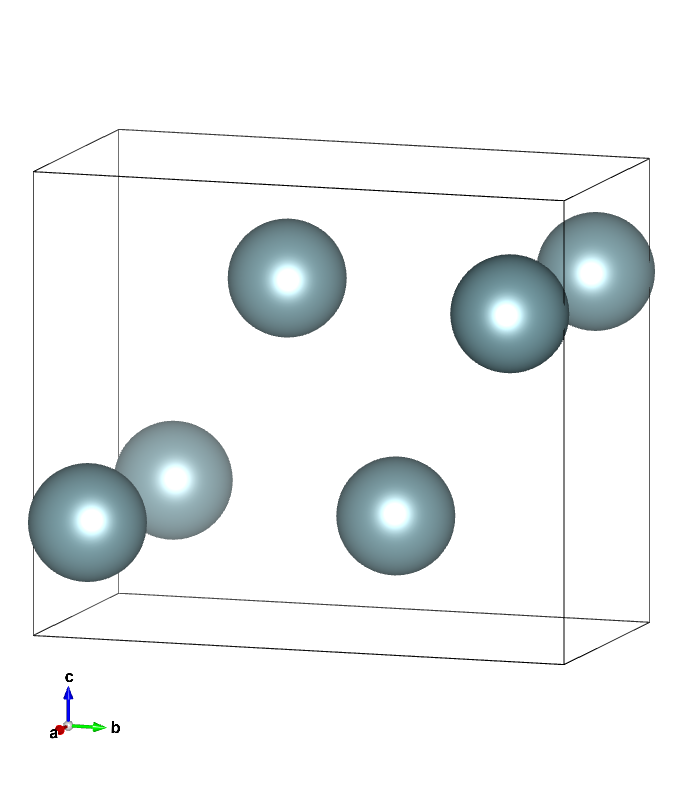

Crystal structure is described in terms of the geometry of the arrangement of particles in the unit cells. The unit cell is defined as the smallest repeating unit having the full symmetry of the crystal structure. The geometry of the unit cell is defined as a parallelepiped, providing six lattice parameters taken as the lengths of the cell edges (a, b, c) and the angles between them (α, β, γ). The positions of particles inside the unit cell are described by the fractional coordinates (xi, yi, zi) along the cell edges, measured from a reference point. The asymmetric unit may be chosen so that it occupies the smallest physical space, and all other particles of the unit cell are generated by the symmetry operations that characterize the symmetry of the unit cell. The collection of symmetry operations of the unit cell is expressed formally as the space group of the crystal structure.

Reader's Guide

Crystal structure and symmetry play a critical role in determining many physical properties, such as cleavage, electronic band structure, and optical transparency. Vectors and planes in a crystal lattice are described by the three-value Miller index notation. The syntax (hkℓ) denotes a plane that intercepts the three points a1/h, a2/k, and a3/ℓ, or some multiple thereof. The Miller indices for a plane are integers with no common factors. Some directions and planes have a higher density of nodes, influencing optical properties, adsorption and reactivity, surface tension, microstructural defects, cleavage, and plastic deformation. For cubic crystals with lattice constant a, the spacing d between adjacent (ℓmn) lattice planes is given by d = a / √(ℓ² + m² + n²). Coordinates in angle brackets such as ⟨100⟩ denote a family of directions that are equivalent due to symmetry operations, and coordinates in curly brackets such as {100} denote a family of plane normals that are equivalent due to symmetry operations.

Did You Know?

• The smallest repeating unit having full symmetry of the crystal structure is the unit cell, defined as a parallelepiped with six lattice parameters.
• Miller indices (hkℓ) denote a plane that intercepts the three points a1/h, a2/k, and a3/ℓ, or some multiple thereof.
• For cubic crystals, the spacing d between adjacent (ℓmn) lattice planes is given by d = a / √(ℓ² + m² + n²).

The Core Principle: Turning Invisible Atoms into Measurable Geometry

The fundamental idea behind X-ray crystallography is that a crystal's internal atomic arrangement acts as a natural diffraction grating for incoming X-rays. When the beam strikes the ordered lattice, radiation scatters in specific directions dictated by the spacing and orientation of the atoms. A crystallographer records the angles and intensities of those scattered beams and then reconstructs a three-dimensional map of electron density. From that density map, the positions of individual atoms, the character of their chemical bonds, and any crystallographic disorder present in the sample can all be extracted. This makes the technique uniquely powerful: it converts an invisible atomic architecture into measurable geometric data, yielding a level of structural detail that no other single experimental method can provide so completely. The result is a comprehensive picture of matter at the scale where chemistry and physics meet.

A Long Prehistory of Crystallographic Thought

Long before X-rays entered the picture, scientists had been puzzling over why crystals display such striking geometric regularity. In 1611, Johannes Kepler mused that the hexagonal shape of snowflakes arose from a regular packing of tiny spherical water particles. Decades later, Nicolas Steno demonstrated experimentally that the angles between faces remain constant for a given crystal type, a principle that still underpins the field. René Just Haüy pushed further in 1784, showing that every crystal face could be described as a simple stacking of identical blocks, a law of decrements that implicitly pointed toward an underlying three-dimensional periodic array. William Hallowes Miller then formalized face identification in 1839 with his system of three small integers, the Miller indices, which remain standard today. The full catalog of possible crystal symmetries was assembled in the nineteenth century by Hessel, Bravais, Fedorov, Schönflies, and, somewhat belatedly, William Barlow, whose 1880s structural proposals would later be confirmed by X-ray evidence.

From Röntgen's Mystery to von Laue's Spots

Wilhelm Röntgen's 1895 discovery of X-rays left the physics community uncertain about what they actually were. William Henry Bragg argued in 1907 that they could not be electromagnetic radiation, pointing to their ability to ionize gases. The wave interpretation gained support when Charles Glover Barkla demonstrated transverse polarization and sharp spectral lines, and when single-slit work in Arnold Sommerfeld's lab estimated a wavelength near one angstrom. The decisive moment arrived in 1912, when Paul Peter Ewald and Max von Laue, chatting in Munich's English Garden, realized that a crystal's unit-cell spacing might match the X-ray wavelength well enough to produce diffraction. Von Laue, with technicians Walter Friedrich and Paul Knipping, passed a beam through a copper sulfate crystal and captured a photographic plate showing a striking pattern of spots arranged in intersecting circles. Presented to the Bavarian Academy that June, the result confirmed X-rays as electromagnetic waves and earned von Laue the 1914 Nobel Prize in Physics.

From the Laboratory to the Clinic

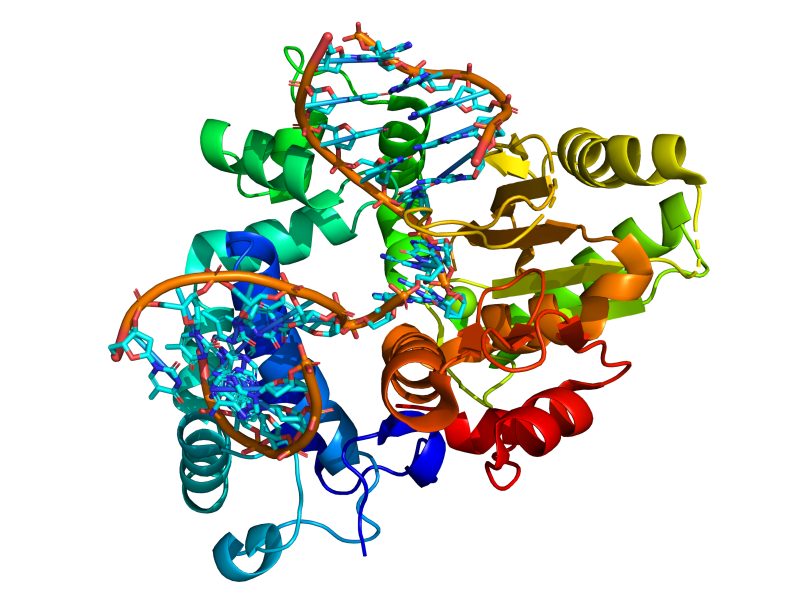

X-ray crystallography has shaped nearly every branch of science that deals with matter at the atomic scale. In its earliest decades it pinned down atomic sizes, bond lengths, and the subtle structural differences between minerals and alloys. In biology it has revealed the three-dimensional shapes of vitamins, therapeutic drugs, proteins, nucleic acids including DNA, and even whole viruses, linking molecular architecture to biological function. Today it remains the principal tool for distinguishing materials that look identical under other experimental conditions, and it can rationalize unusual electronic or elastic behavior, illuminate chemical reaction pathways, and provide the structural templates from which new pharmaceuticals are designed. The modern workflow is methodical: high-quality samples are prepared, diffracted intensities are carefully recorded, artifacts are stripped from the data, direct methods yield an initial atomic model, difference maps refine it, and a final numerical optimization of atomic positions against the experimental data—sometimes aided by ab-initio calculations—produces the published structure, which is deposited in international databases for the benefit of the entire research community.
